Route 189 over Blackwater River

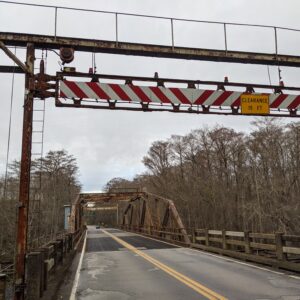

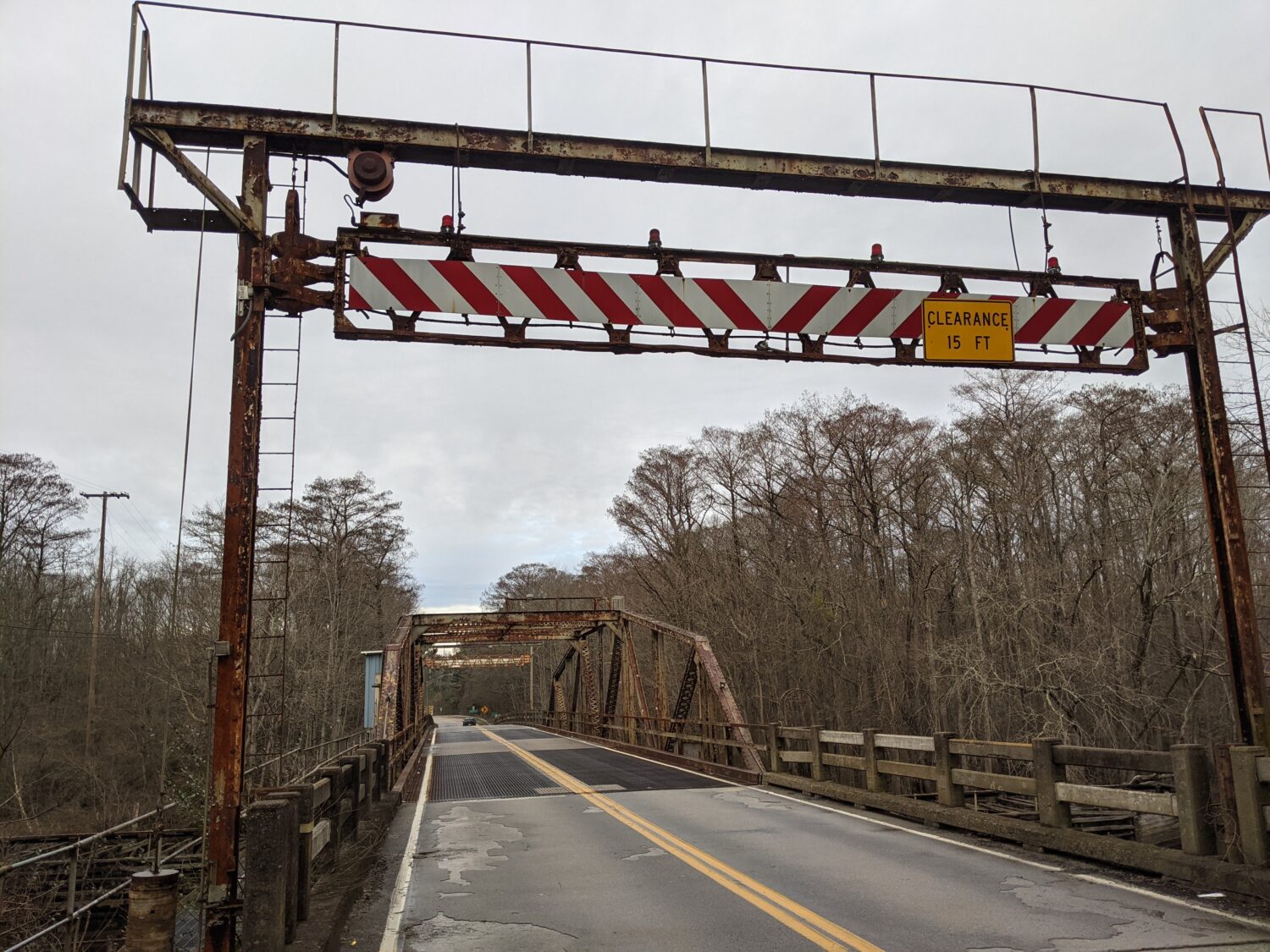

Existing swing span truss bridge to be demolished.

Removing section of existing swing span.

275-ton and 160-ton crawler cranes on temporary trestles on either side of the river opening. The existing span over the river has been demolished.

Setting beams over the river with a 275-ton and 160-ton crawler crane.

Superstructure forming.

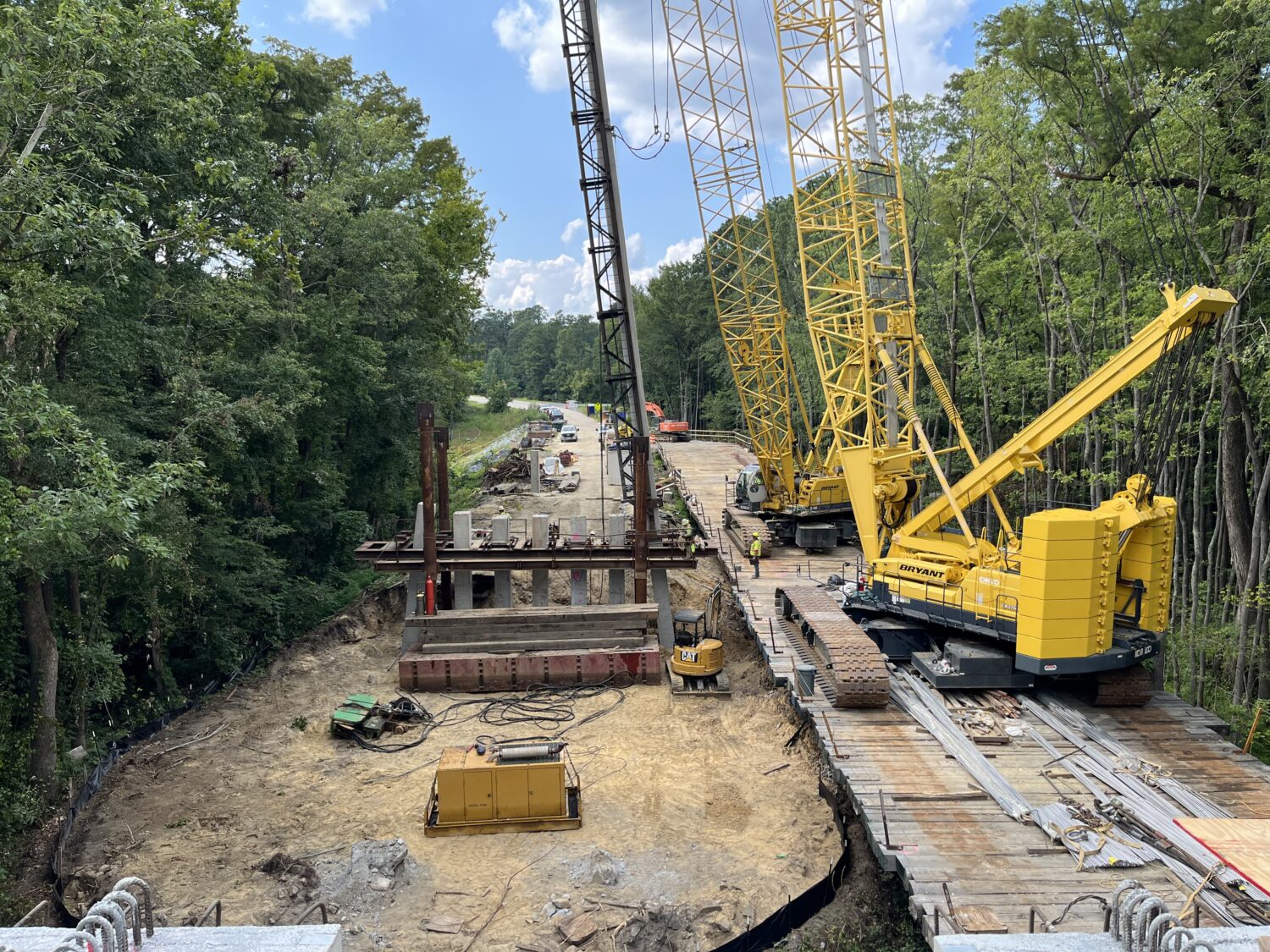

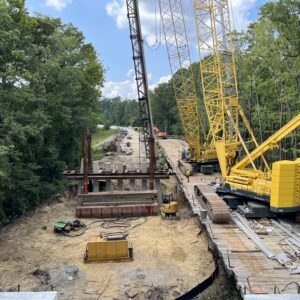

Driving Pier 5 bent piles from the temporary trestle.

Pouring the Span C bridge deck.

Route 189 over Blackwater River

Southampton County, VA

This project involves replacing a non-functioning, swing span truss bridge with a new, much taller structure that provides sufficient clearance for boat traffic. Approach grades are being raised by as much as 20′ and require the installation of wick drains and settlement monitoring. Structure work includes demolition of the existing bridge, construction of a new 794′ long by 35′ wide bridge, and repairs to the existing fender system. The new structure consists of four hammerhead piers, two pile bents, and 61″ Bulb-T girders. Bridge construction is performed almost exclusively from a temporary trestle to protect the environmentally sensitive wetlands. This $11 million project is scheduled to be completed in June of 2023.
